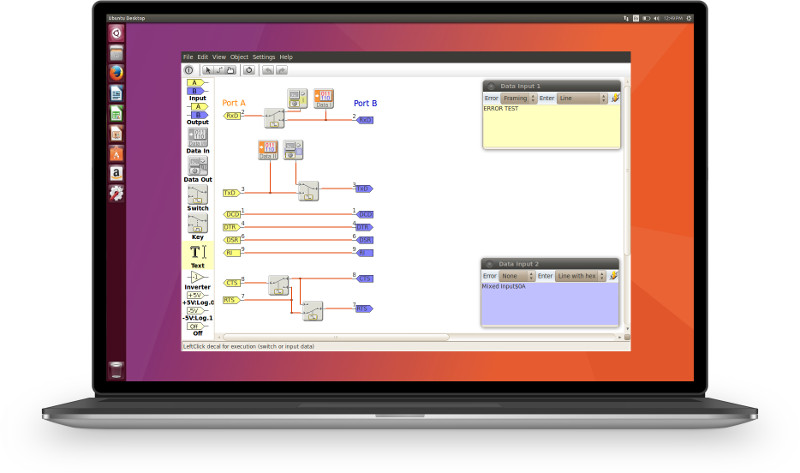

Switch Option license
A virtual patch panel between the inputs and outputs of
both analyzer ports. On this you can place switches,
inverters and further elements and wire them to the
input or output connectior pins - interactive and even
during an active communication!
Learn more

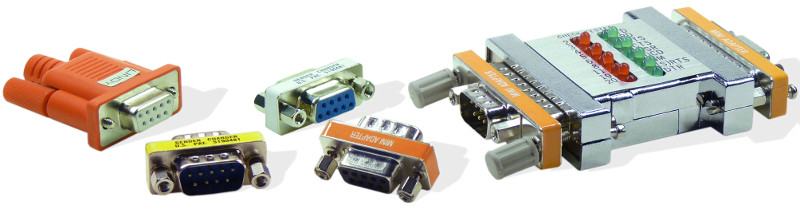

Ledtester and Adapters
Don't worry about wrong or not fitting connectors. The
toolkit holds the right adapter in readiness and a
Ledtester serves for quick checks.
In case of a reversed signal (e.g. a TTL signal) just
invert it with the help of the switch option.

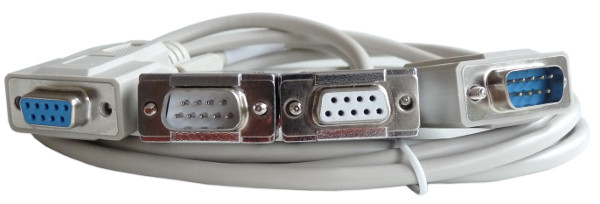

W232 connecting cable
Prepare your connection for non-interruptable
analysis. Plug-in the MSB-RS232 analyzer at any time and
without breaking or disturbing an active communication!

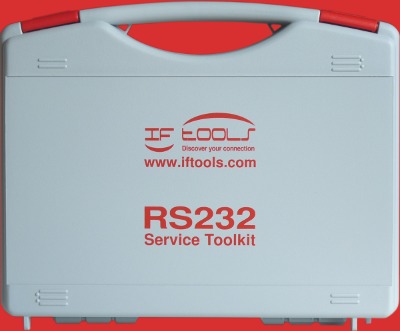

Suitcase content

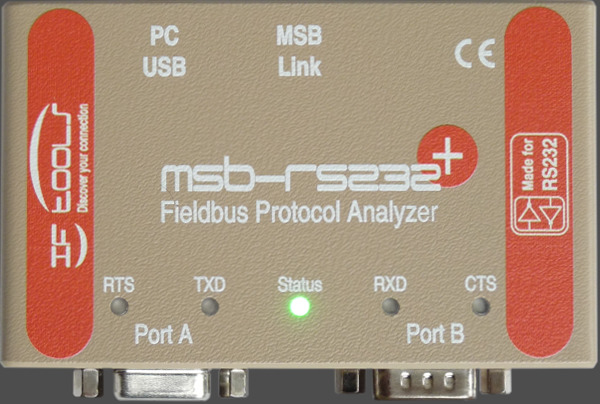

- MSB-RS232-PLUS analyzer with activated switch option
- Standard USB cable to connect analyzer with PC
- W232 cable for non-interruptable analysis
- Led tester 9/25pin for a first check
- Null modem adapter
- Loopback adapter
- 9pin DSub male to male Gender Changer
- 9pin DSub female to female Gender Changer
-
CDROM with Software (Windows + Linux), 300-page
manual (PDF), drivers and additional tools
- Laminated Quickstart guide
- Laminated RS232 Reference
Our price 579 €
Your advantage ca. 100 €
in comparison with the single components!
